Описание

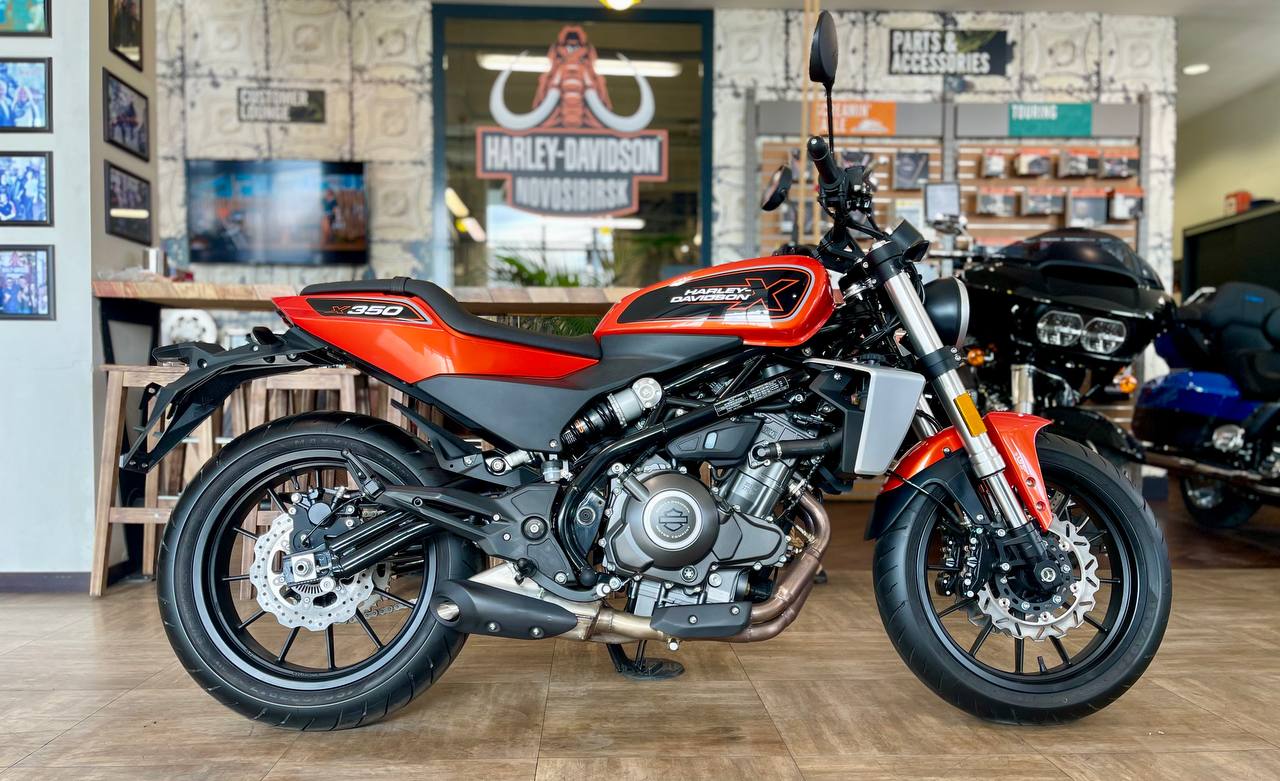

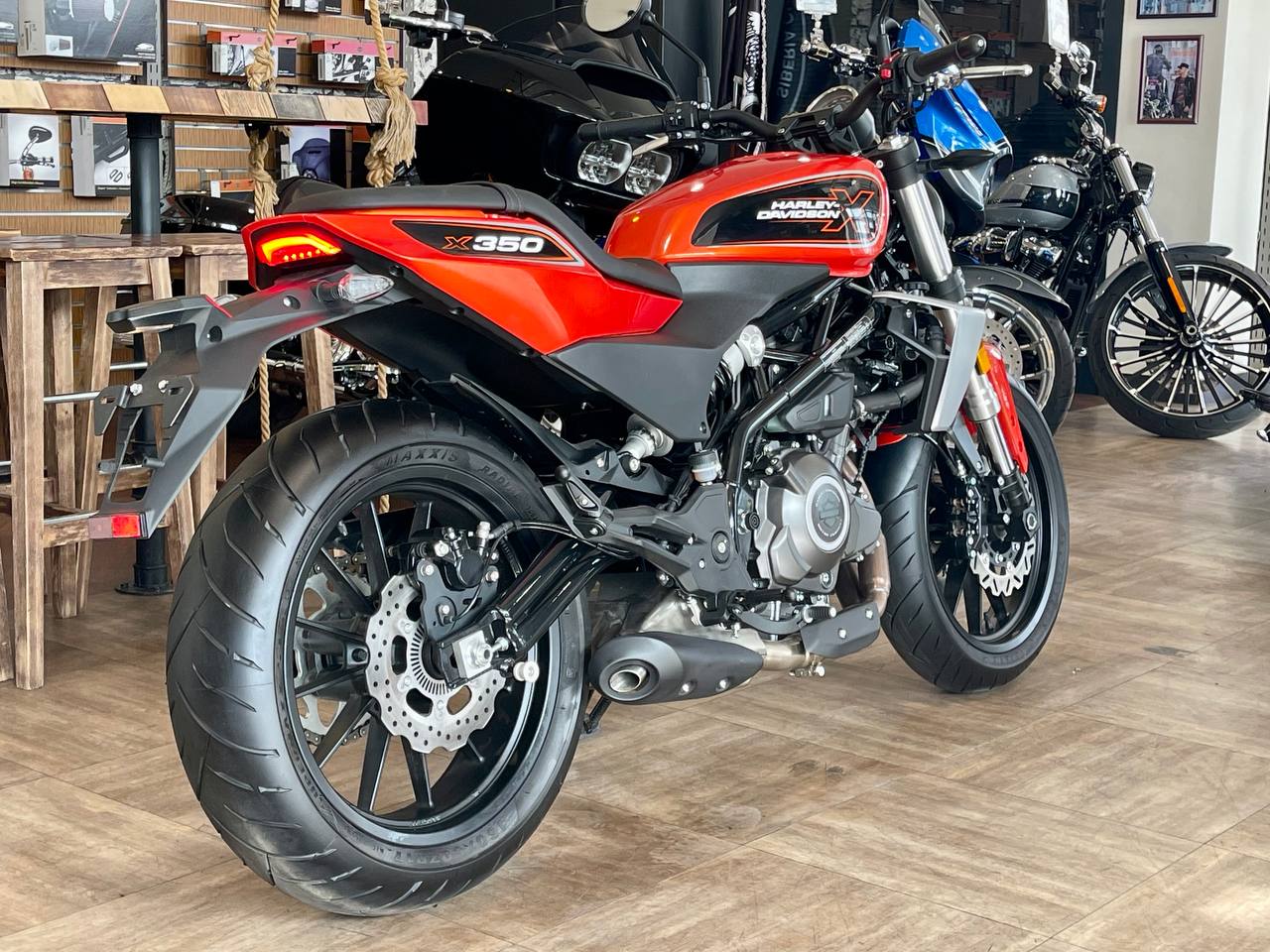

Detailed Specs
DIMENSIONS
LENGTH
2,110 mm
SEAT HEIGHT, UNLADEN
777 mm
GROUND CLEARANCE
143 mm
RAKE
24.8
TRAIL
140 mm
WHEELBASE
1,410 mm
TYRES, TYPE
Maxxis Supermaxx ST
TYRES, FRONT SPECIFICATION
120/70-ZR17/58W
TYRES, REAR SPECIFICATION
160/60-ZR17/69W

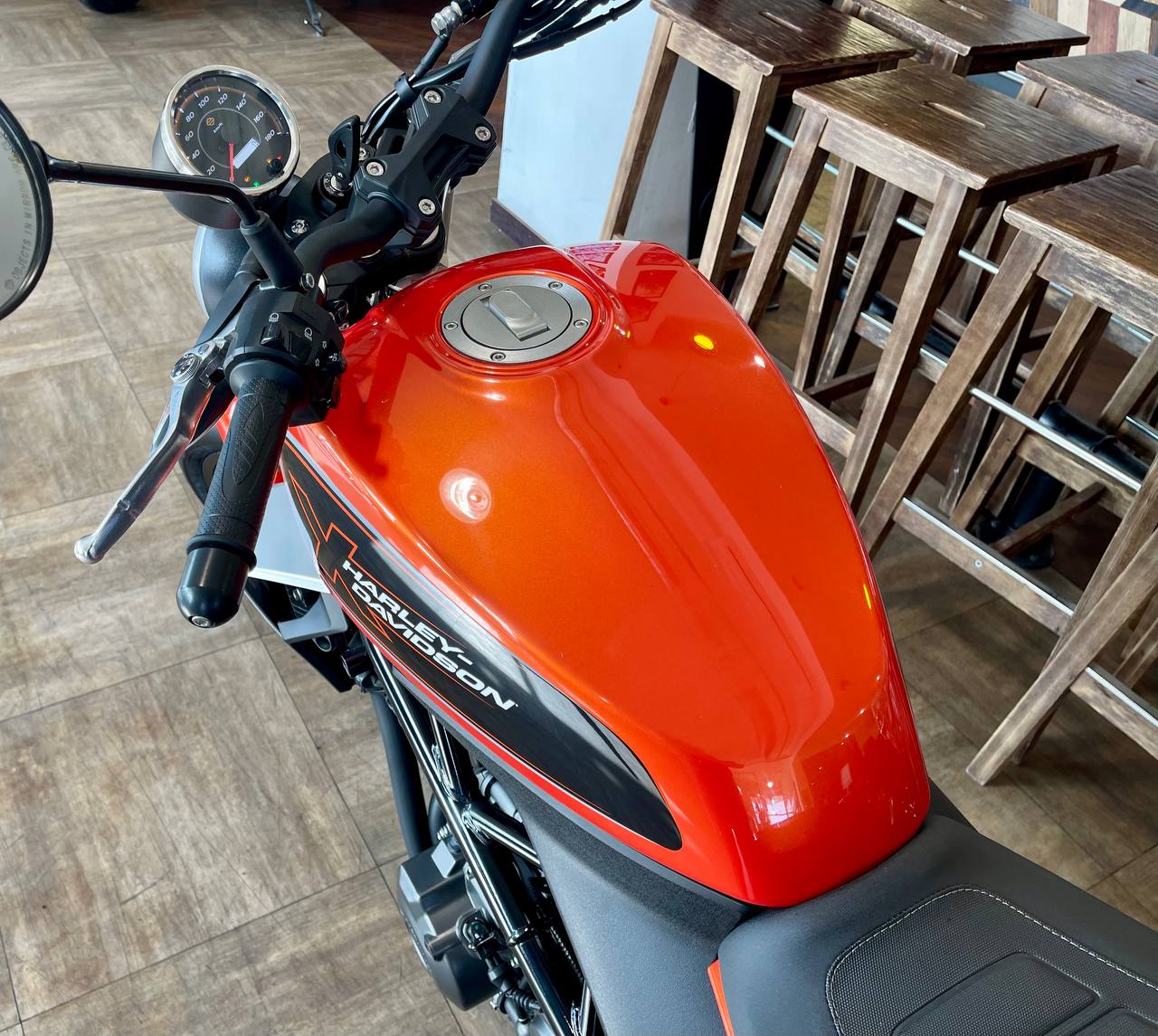

FUEL CAPACITY
13.5 l
OIL CAPACITY (W/FILTER)
3.2 l
WEIGHT, AS SHIPPED
180 kg
WEIGHT, IN RUNNING ORDER
195 kg

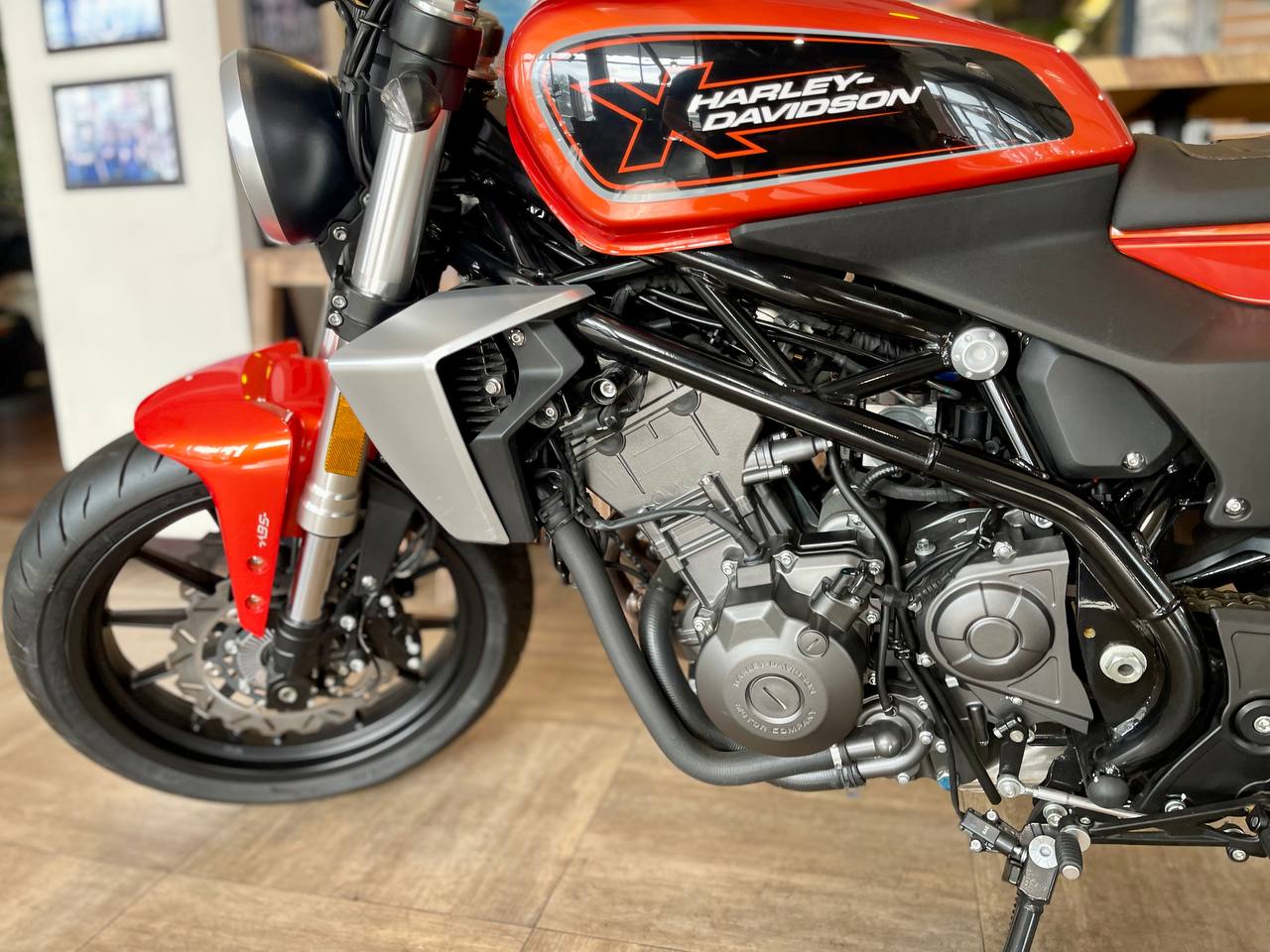

ENGINE
ENGINE 2
Liquid-cooled, Parallel-Twin, 353cc
BORE
70.5 mm
STROKE
45.2 mm
DISPLACEMENT
353 cc
COMPRESSION RATIO
11.9:1
FUEL SYSTEM
Electronic Sequential Port Fuel Injection (ESPFI)
EXHAUST
2 into 1 short single, 3 catalyst
PERFORMANCE
ENGINE TORQUE TESTING METHOD
GB/T20076-2006, GB/T5363-2008
ENGINE TORQUE 3
31 Nm
ENGINE TORQUE (RPM)
7000
HORSEPOWER
36 HP / 27 kW @ 9500 rpm
LEAN ANGLE, RIGHT (DEG.)
52
LEAN ANGLE, LEFT (DEG.)
51
FUEL ECONOMY TESTING METHOD
WMTC
FUEL ECONOMY
4.95 l/100 km
CO2 EMISSIONS TESTING METHOD
WMTC
CO2 EMISSIONS
115 g/km CO2
DRIVE TRAIN
PRIMARY DRIVE
Chain, 82/31
GEAR RATIOS (OVERALL) 1ST
3.167
GEAR RATIOS (OVERALL) 2ND
2.056
GEAR RATIOS (OVERALL) 3RD
1.556
GEAR RATIOS (OVERALL) 4TH
1.333
GEAR RATIOS (OVERALL) 5TH
1.19
GEAR RATIOS (OVERALL) 6TH
1
CHASSIS
FRONT FORK
41mm upside down rebound adjustable

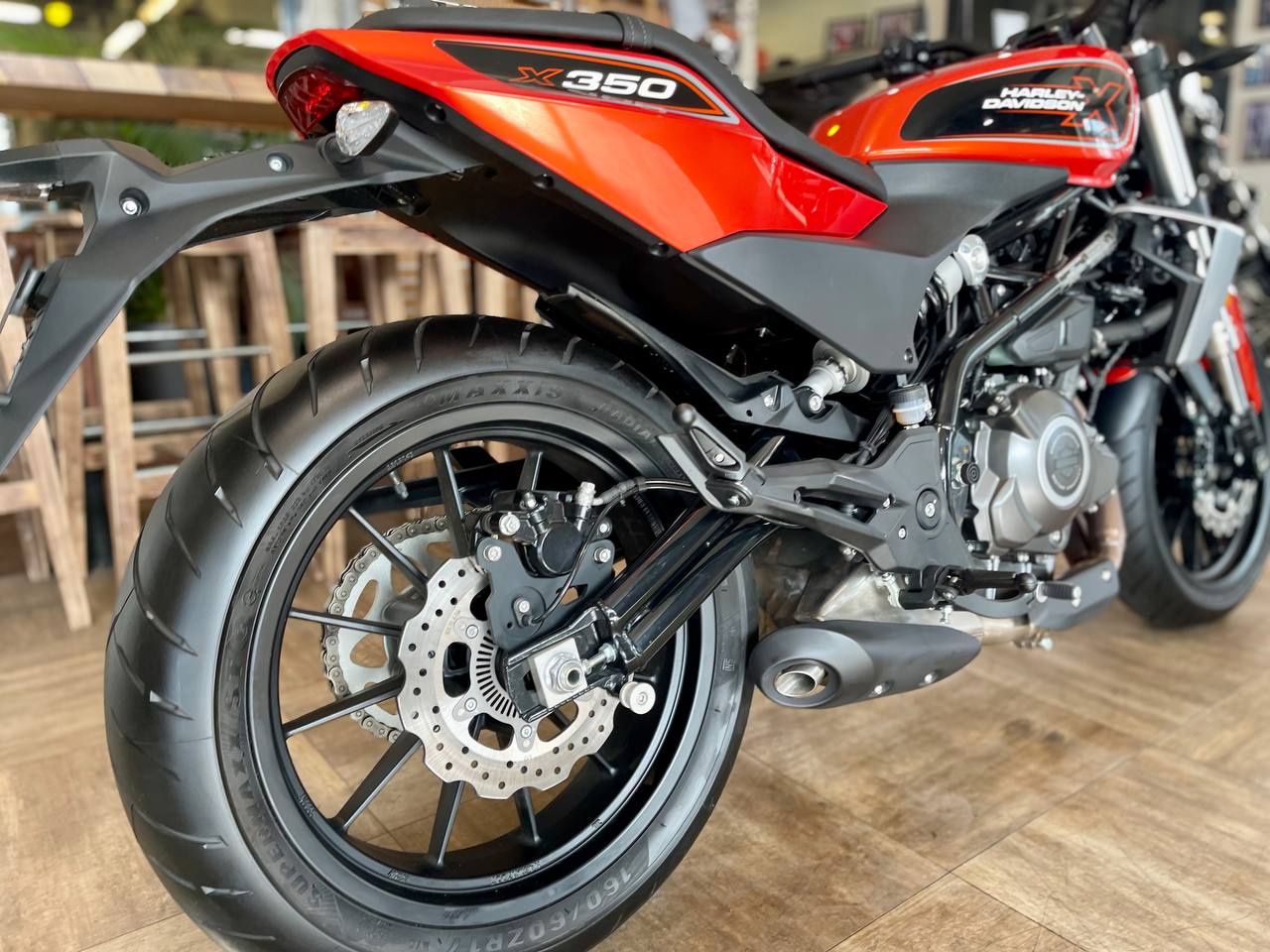

REAR SHOCKS
Oil and gas separation type, rebound damping adjustable, preload adjustable shock absorber
WHEELS, FRONT TYPE 4
Cast aluminium
WHEELS, REAR TYPE 4
Cast aluminium
BRAKES, CALIPER TYPE
Front floating, rear solid
BRAKES, ROTOR TYPE
4-piston fixed front and 1-piston floating rear
ELECTRIC
LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS
All LED, low beam, high beam and signature position lamp. All LED Tail/Stop, front signal lights and rear turn signals.

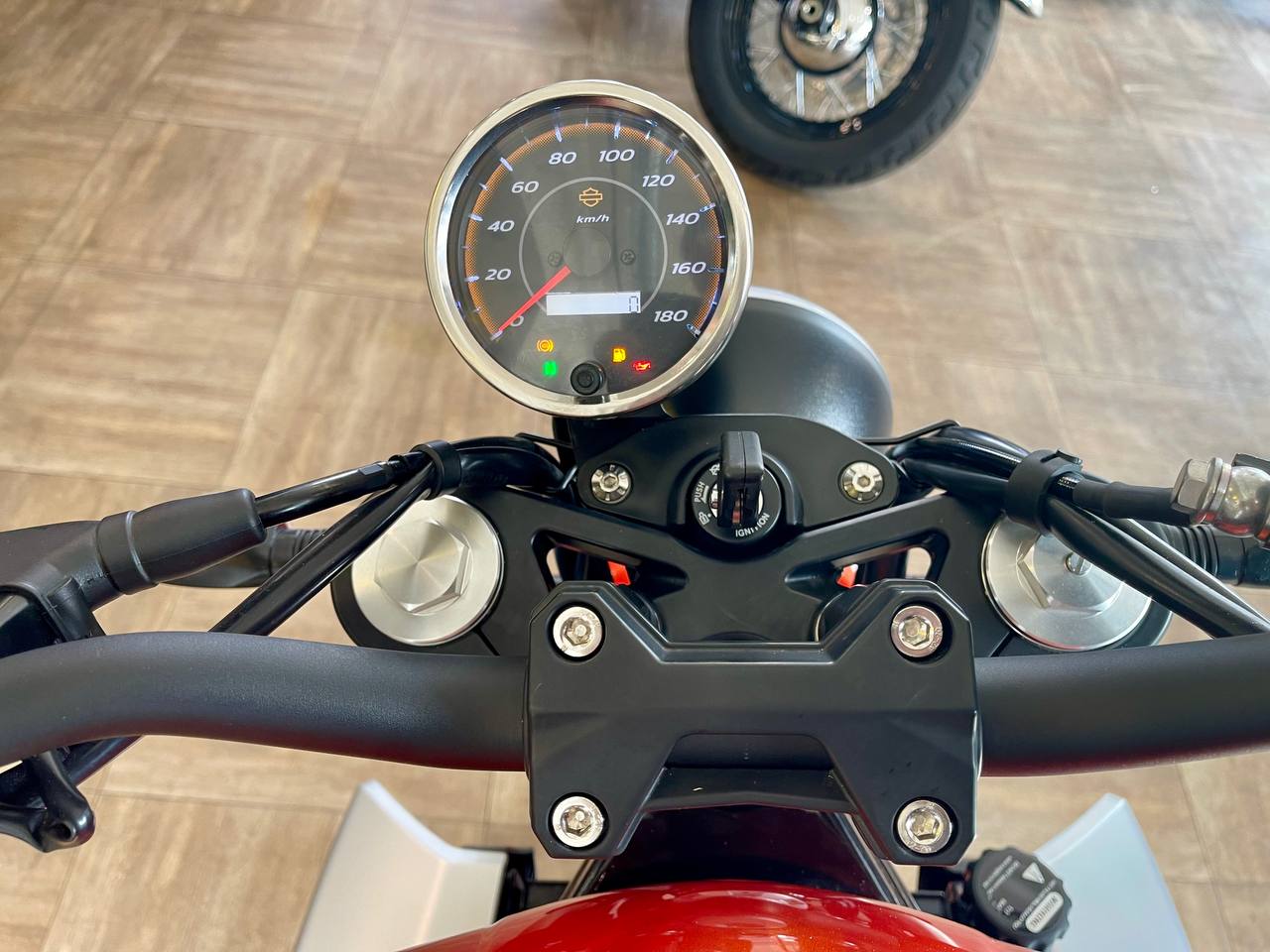

GAUGES
Combined electronic instrument stepper motor indicating vehicle speed, digital indicates rpm, hour, total trip, two trips (A + B), km/mile indication
